Dream thermal imaging camera for electronics repair by a small upgrade!
Corresponding video tutorial on YouTube here: https://www.youtube.com/watch?v=euzrK6geT3I
The camera can be operated on PC with smooth 15FPS!
This requires:
- ThermoVision JoeC Software
- Zadig 2.4 software
- USB-C to USB2.0 or USB3.0 adapter
- USB2.0 or USB3.0 extension cable
necessary.
Package Includes:

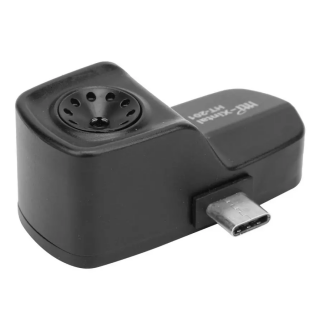

1 x Thermal Imager
1 x Box
Specification:
Condition:100% Brand New
Item Type: Infrared Imager
Material: ABS
Color: As shown in the picture
Model: HT-201
Resolution: 320x240
Temperature range: -40°C to 330°C
Wavelength range: 8-14μm
Field angle/focus length: 26°x34°
Image format: jpg
Video format: mp4
Frame rate: 9Hz / 15Hz with ThermoVision JoeC Software possible
Detection mode: Fixed
Detection scope: 300m
Detection definition: When one object is found in the field of view, the image of the object must occupy more than 1.5 pixel in the directionof critical size. Shortest focal length: 0.15m
Target size: Cover 4 pixels
Work temperature: 0 to 40
Storage temperature: -20 to 60
Plug: Type-C , micro USB
Power provision: 5V(External equipment power supply)
Item Weight: 40g/1.4oz
Item size: 52 * 33 * 23mm / 2.0 * 1.3 * 0.9in
Package size: 175 * 102 * 62mm / 6.9 * 4.0 * 2.4in
Package weight: 248g / 8.7ounce
